Cable Sheath Automotive Wire - 3MM

Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM
Cable Sheath Automotive Wire - 3MM

Cable Sheath Automotive Wire - 3MM

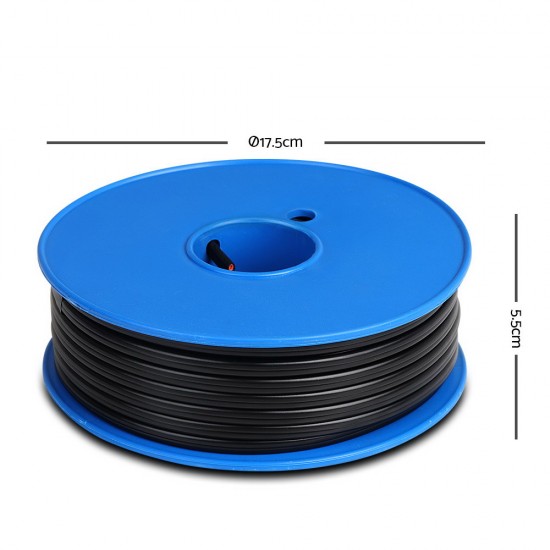

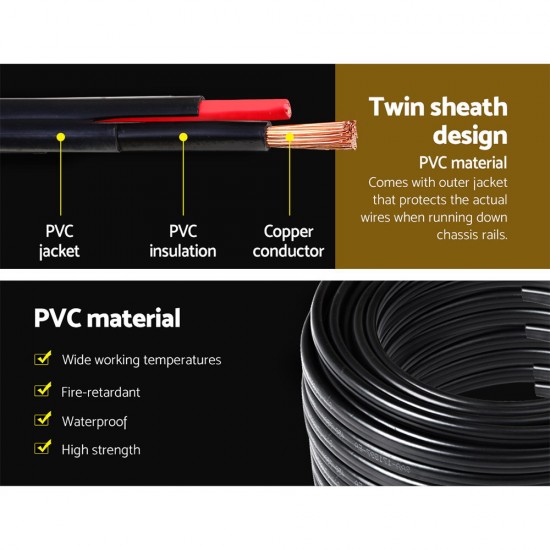

Our 3MM twin sheath automotive cable pure features a  oxygen-free copper wire and  reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:
* 3MM twin sheath automotive cable
* Oxygen-free copper core conductor
* Low eccentricity * Reinforced PVC material
* SAA-certified* RoHS

_x000D_



_x000D_

Specifications:
* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808 * Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 16 * No. of cores: 2 * Cable Length: 30m
* Cable diameter: 3mm
* Strand no. diameter: 14/0.32mm * Nominal area: 1.13mm2
* Nominal O.D.: 3.3mm x 5.5mm* Colour: Black sheathing * Conductor resistance <17.0O/Km(20?)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%

_x000D_


Package Content:
1 x Twin Core Cable

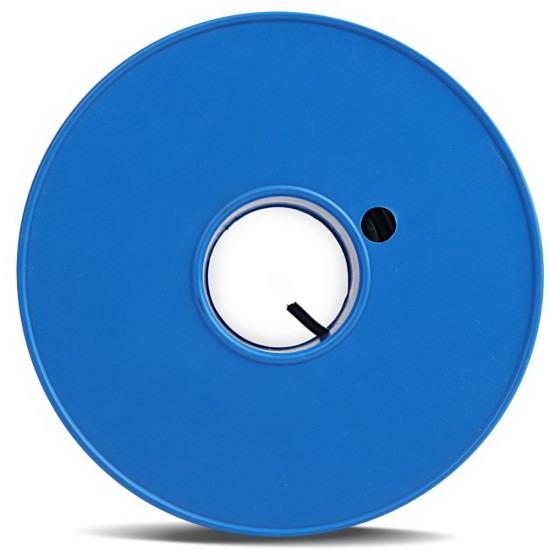

1 x Cable Spool

Write a review

Note: HTML is not translated!
Bad Good

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

$34.32
  • Stock: In Stock
  • Model: OZ-TWIN-CABLE-3MM-30
  • Weight: 0.00
  • SKU: OZ-TWIN-CABLE-3MM-30
